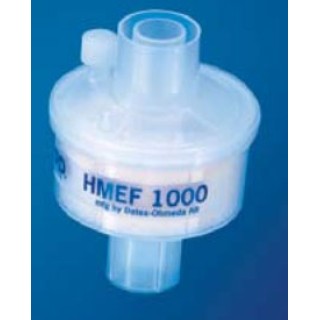

Halyard Health 152 - Heat and Moisture Exchangers and Filters, 50/CA

Halyard Health 152 - Heat and Moisture Exchangers and Filters, 50/CA

Halyard Health/Ballard, a world leader in tracheal and endotracheal closed suction systems, offers Heat and Moisture Exchangers (HMEs), Filtering Heat and Moisture Exchangers (HMEFs) and Filters designed with the same quality as our Ballard Trach Care products. HMEs enhance humidification, HMEFs humidify and filters help provide filtration of bacteria and viruses. All three devices are designed to help ventilator patients in critical care and anesthesia.

HMEs: Effective Moisture, Heat Retention

HMEs ensure effective moisture and heat retention, minimizing the moisture loss of the patient. Features include:

• low resistance to flow.
• light weight.
• flexible designs for different tidal volumes.

HMEFs: One Product, Two Uses

HMEFs humidify and help reduce the transfer of bacteria and viruses between the patient and practitioner. HMEFs are cost effective devices because they reduce the need for expensive, heated humidification systems, and provide filtration of circuits, for ventilator patients.

Features include:

• meets AARC Clinical Practice Guidelines for minimum.
• moisture output.
• low breathing resistance.
• luer-lock port for gas sampling.
• electrostatic filtration for attracting bacteria and viruses.
• co-axial connection ports for greater connector flexibility.
• hygoscopic additive for retaining humidity.
• 99.999999% bacterial filtration.
• 99.99% viral filtration.

Halyard Health Ballard Heat and Moisture Exchangers and Filters is just one of the clinical solutions that you can depend on to meet the demands of your fast-paced world. Whether your needs involve preventing healthcare-associated infections, surgical and digestive solutions or pain management, with Halyard Health youll always have one less worry.

Specifications

• Approximate Tidal Volumes: 1000 mL.
• Moisture Output (After 24 Hours) (mgH2O/L): 30
• Moisture Output (After 24 Hours) (at vt, mL): 500
• Resistance 60 L/min: 2.5
• Resistance 30 L/min: 1.0
• Connector - Machine Side (mm): 15 Male.
• Connector - Patient Side (mm): 22 Male/15 female.
• Weight: 8 g.
• Dead Space: 28 mL.
• HME Configuration: 1000 Heat and Moisture Exchanger.
